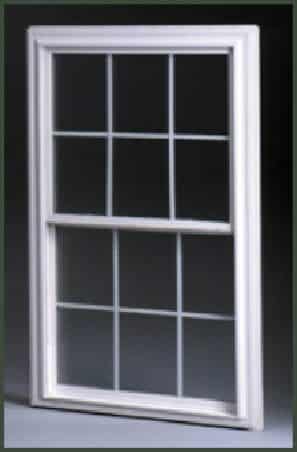

6200 Series Double Hung & Oriel

Interested in a Free Estimate? Fill out our 90 second form!

 6200 Series Double Hung & Oriel

6200 Series Double Hung & Oriel

One of the most popular styles of windows today, our elegant double-hung windows add style and class to any home. This classic design fits well with both renovations of older homes and new construction. The Double Hung is the traditional American window.

The Double Hung window consists of two “sashes”, one on top and one on the bottom…that slide up and down as well as tilt in for easy cleaning. The sliding action is made possible by stainless steel coil springs (Constant Force Balance System) which support the weight of each sash.

The bottom (inside) sash is primarily used for opening the window, although the top (outside) sash can also be slid downward for ventilation

Features of the 6200 Double-hung Window:

  • – 3-1/4” Contoured, fully welded, grooved frame with steel reinforced sloped sill
  • – Multi-chamber frame design with optional insulating foam fill
  • – Fully welded, triple weather sealed sash profiles with interlock and integrated pull handle
  • – Externally glazed sashes sealed with 100% silicone
  • – Sash members reinforced with tubular shaped galvanized steel profiles (dependent on structural performance level)
  • – Standard half or optional full insect screen with extruded aluminum frame and durable fiberglass mesh
  • – Dual or triple 7/8” insulated glass units with “Warm Edge” Intercept®  or Super  Spacer System ®
  • – Optional Argon or Krypton gas fill
  • – Optional decorative grids between the glass
  • – Maintenance free “constant force” balance system for smooth and easy sash movement
  • – Tilt latches for easy cleaning access
  • – Metal, low profile cam locks for increased security and an unobstructed view
  • – Ventilation positioning latches
  • – Minimum window size is 15-1/2” width x 24-1/4” height
  • – Maximum size depends on total window united inches and frame color
  • – Oriel option with shorter bottom sash is available for oversize openings
  • – White or Tan solid colors, Painted exterior/interior color of choice, Laminated Wood Grains for interior
  • – Various interior/exterior accessory and finishing trim profiles for window connections, retrofit and new construction applications
  • – Limited lifetime window and 20 year insulated glass warranty
